Name: 8 Port 10/100 Ethernet Switch
Brand: Match LB-Link
SKU: 10193
Availability: InStock

On Sale!

Original price was: ₹1,399.00.Current price is: ₹650.00.

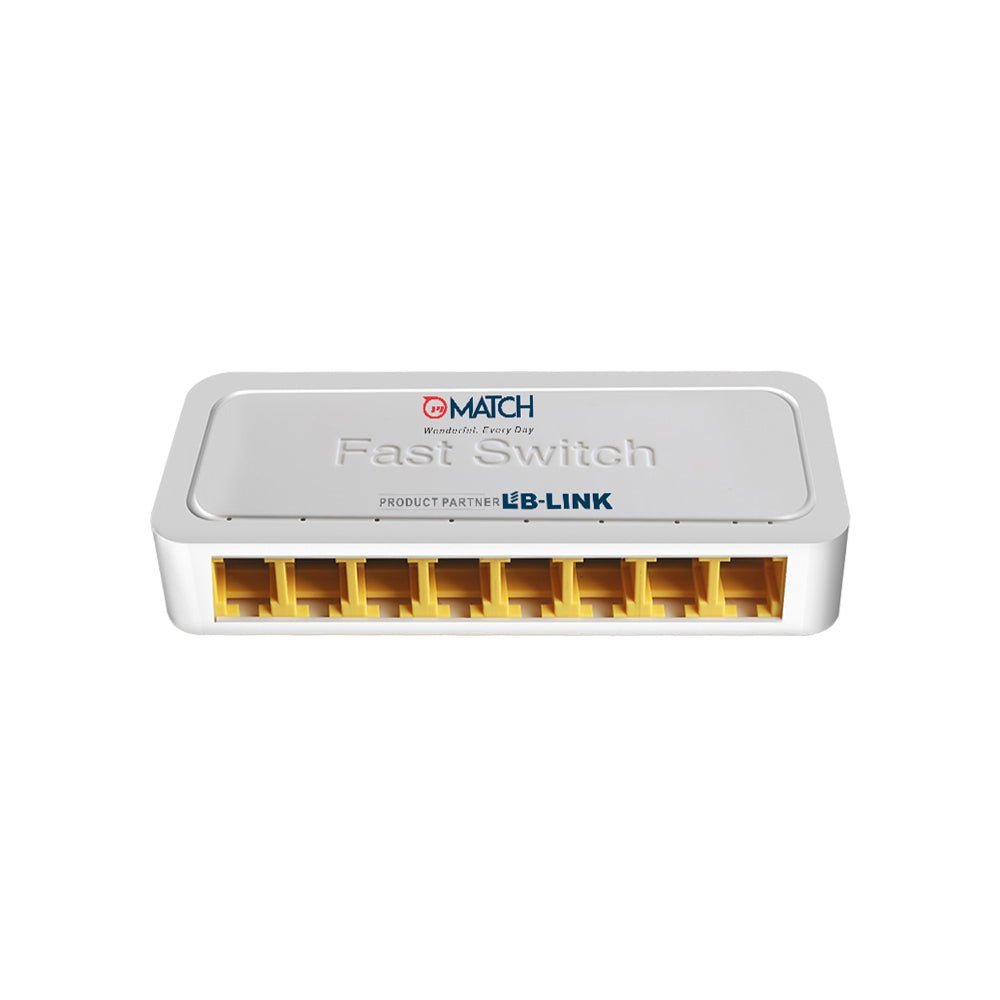

MATCH LB-Link 8 Port Ethernet Switch
(BL-SF801)
This Match LB-Link 8 port Ethernet switch is a 10/100Mbps non-management switch, which provides 8 10/100Mbps RJ45 ports and supports wire-speed forwarding of all ports. It supports IEEE802.3az energy-efficient Ethernet (EEE) technology, IEEE802.3x full-duplex flow control function and half-duplex backpressure flow control function.
Match LB-Link 8 Port ethernet switch has a durable design, quiet operation, simple and convenient use, no configuration, plug and play, very suitable for the small office, home office (SoHo), and small and medium business (SMB) environments.
Features:

Comply with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az Ethernet standards;
Support 8 x10/100Mbps Auto-negotiation RJ45 ports, support auto MDI/MDIX;
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode;
Supports IEEE802.3az energy-efficient Ethernet (EEE) technology;
1K entry MAC address table of the switch with auto-learning and auto-ageing;
LED indicators for monitoring Port Link / Activity;
External power supply, exquisite design, suitable for desktop installation and use
Adopt the store-forwarding mode
Switching Capacity 1.6Gbps

Model Name

BL-SF801

Chipset

IP178G

Standards and Protocols

IEEE802.3, EEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3a

Interface

8 x 10/100Mbps Auto-Negotiation ports

Network Media

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)

Transfer Method

Store-and-Forward

MAC Address Table

Switching Capacity

1.6Gbps

Packet Forwarding Rate

1.19Mbps

Indicators

Per Device
Power

Per Port
Link/Activity

Power Supply

DC: 5V, 0.5A External Power

Power Consumption

Maximum: 1.7W (220V/50Hz)

Dimensions

130.7*52.3*20mm

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing

DOWNLOAD
