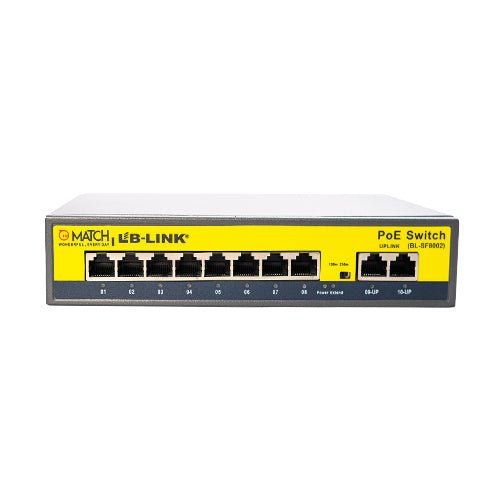

8 Port PoE Switch with 2 Uplink Ports | Match
BL-SF8002
8 Port PoE Switch with 2 Uplink Ports of Match LB-Link. This PoE switch saves power cables and costs. Get reliable and authentic data transmission. Easy Installation.
Key Features:
8 POE Port at 10/100 each without missing data.
2 Ethernet Normal Uplink at 10/100 Mbps each.
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant.
Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
One-key Smart: Supports two kinds of working modes (100Meter POE, Extend 250Meter POE VLAN Mode)
All ports support wire-speed switching, jumbo frame transmission
Support upstream ports lightning protection
Dynamic power control to ensure stable output power (Enhanced)
Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers’ products)
Reliable short-circuit protection to ensure safety (Enhanced)
Over-voltage and under-voltage protection (Some other manufacturers’ products don’t support this)
Extend networking port can extend signal and distance up to 250m.
Every port supports MDI/MDI auto flip and self-negotiation.
Support CAT-5e or better access point (AP) and data transmission for the networking camera.
Power Input:- 100-240V AC 50/60Hz
Plug-and-play, simple set up, smart management, anti-thunder designs
Download EDM
Download Datasheet
Check Out 4 Port PoE Switch >>
