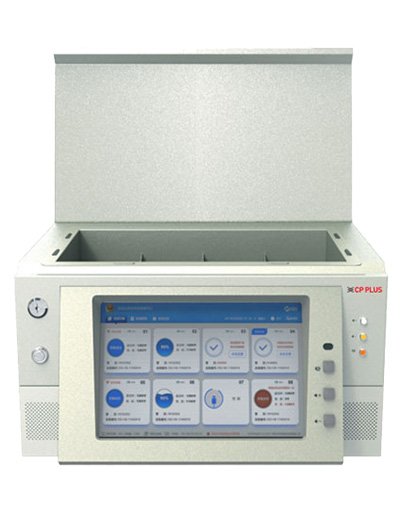

CP-EDS-Y08
8 Ports Docking Station with screen
OS Version
Android 5.1
Screen
10 inch touch screen, resolution 1920 x 1200
Memory
8GB
Automatically Backup
When BWC connect to the terminal, it will backup all the video, audio, pictures and log file automatically.
Data Interface
8 channel docking slot or USB connection
Storage Empty
The terminal will empty all the data in the BWC when the backup finished.
Backup time
8 channel 16G data can be finished in 60 minutes, average speed is 4~6MB/S.
Status Display
During the backup progress, it can display the device id, name, group, storage space, backup status and so on.
Working time
7×24 hours continue working
Ethernet Standard
1 RJ45, 100/1000M
System Log
System will record all operation log of the terminal
Upload
All the video files will upload to the center server automatically or manually
Recharging
8 channels BWC can finish recharging in 4 hours and 45 minutes if the unit is OFF, if it’s ON, it need about 5 hours
USB
4 USB 2.0 ports
Operating Temperature
-10°C-55°C
Net Weight(g)
14kg
Dimension
295mm x 400mm x 213mm
Power Source
Normal voltage: AC100V—240V~50/60HZ
