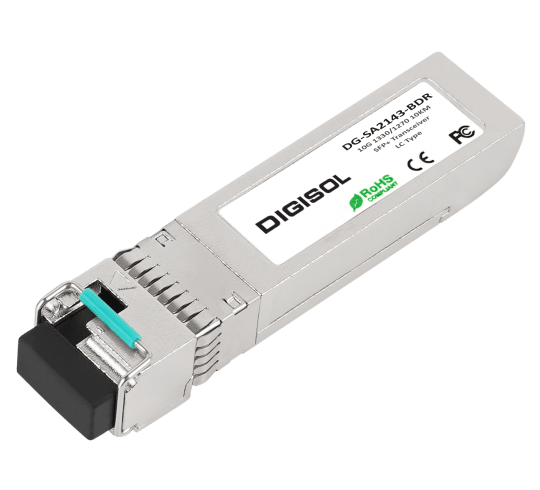

DG-SA2143-BDR/BDT – DIGISOL 10Gbps SFP+ Single Mode Single Fiber SFP Transceivers
DIGISOL family of Small form Factor Pluggable (SFP+) hot pluggable 3.3Vtransceivermodules are specifically designed for the high performance integrated data linkup to 11.3Gbps over optical fiber. With the hot pluggability, these modules offer an easy way to be installed into SFP+ ports at any time without the
interruption of the host equipments operating online. The module data linkup to 20km in 9/125um single mode fiber.
KEY FEATURES
Up to 11.3Gbps Data Links
Single Mode LC Receptacle
Upto 20km transmission on SMF
Power dissipation<1.2W
1270nm DFB laser and PIN receiver
2-wire interface with integrated Digital Diagnostic monitoring
EEPROM with Serial ID Functionality
Compliant with SFP+ MSA with duplex LC connector
Single + 3.3V Power Supply and LVTTL Logic
Case operating temperature: Commercial: 0°C to +70°C
