KEY FEATURES
Multi-WAN load balance for reliable and efficient access
Tag based and port based VLANs to group control and relocate traffic pattern
Fully protocol stack for both IPv4 and IPv6, afford to 1000 concurrent users and 100,000 concurrent sessions
IPsec, PPTP and L2TP VPN support up to 64 concurrent tunnels with max 200Mbps throughput (Ipsec)
QoS and Bandwidth Management for optimal bandwidth usage
Firewall with SPI, CSM & IPS prevent hacker attacking and enhance network efficiency
SNMP and Telnet CLI for administrator to manage system
High Availability for mission critical application with muti-WAN load balance and VPN tunnel failover, also VRRP for device redundancy
WLAN controller can manage up to 100 APs & 1000 users, with Discovery, Configuration, and Monitoring Functions
User certification by X.509 and authentication by Radius/AD/LDAP server for user and group management
SIZE GUIDE
SIZE | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
BUST | 88 | 89 | 90 | 91 | 92 | 93 |
WAIST | 55 | 56 | 58 | 59 | 62 | 65 |
HIPS | 90 | 92 | 94 | 95 | 96 | 98 |
SIZE | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
BUST | 60 | 62 | 65 | 66 | 68 | 69 |
WAIST | 50 | 55 | 58 | 62 | 65 | 66 |
HIPS | 80 | 82 | 85 | 86 | 88 | 89 |
Size | US | UK / AUS | France | Italy | Japan | Denmark |
---|---|---|---|---|---|---|
XS | 0-2 | 6 | 34 | 38 | 5 | 32 |
S | 2-4 | 8 | 36 | 40 | 7 | 34 |
M | 6-8 | 10 | 38 | 42 | 9 | 36 |
L | 8-10 | 12 | 40 | 44 | 11 | 38 |
Description

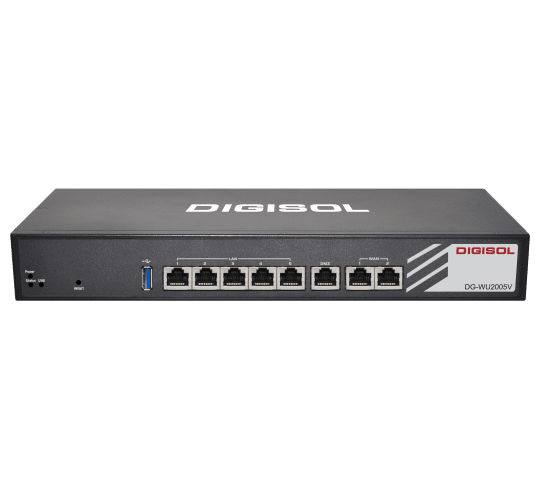

DIGISOL DG-WU2005V is a Wireless Controller based Access Gateway with multi function support that includes WLAN Controller, VPN Firewall, Internet Scheduler and Internet ticket generator for Hotspot use and Guest Access Management.It can support QR code login with application software provided. The Wireless Manager function provides AP management for DIGISOL’s popular access points like DG-WM2005SI,DG-WM2003SI and DG-WM6305SI.This DG-WU2005V, Multi Service gateway device supports multiple WAN ports with dedicated DMZ port, 5 LAN ports & 1 USB port for 3G/4G connectivity.
