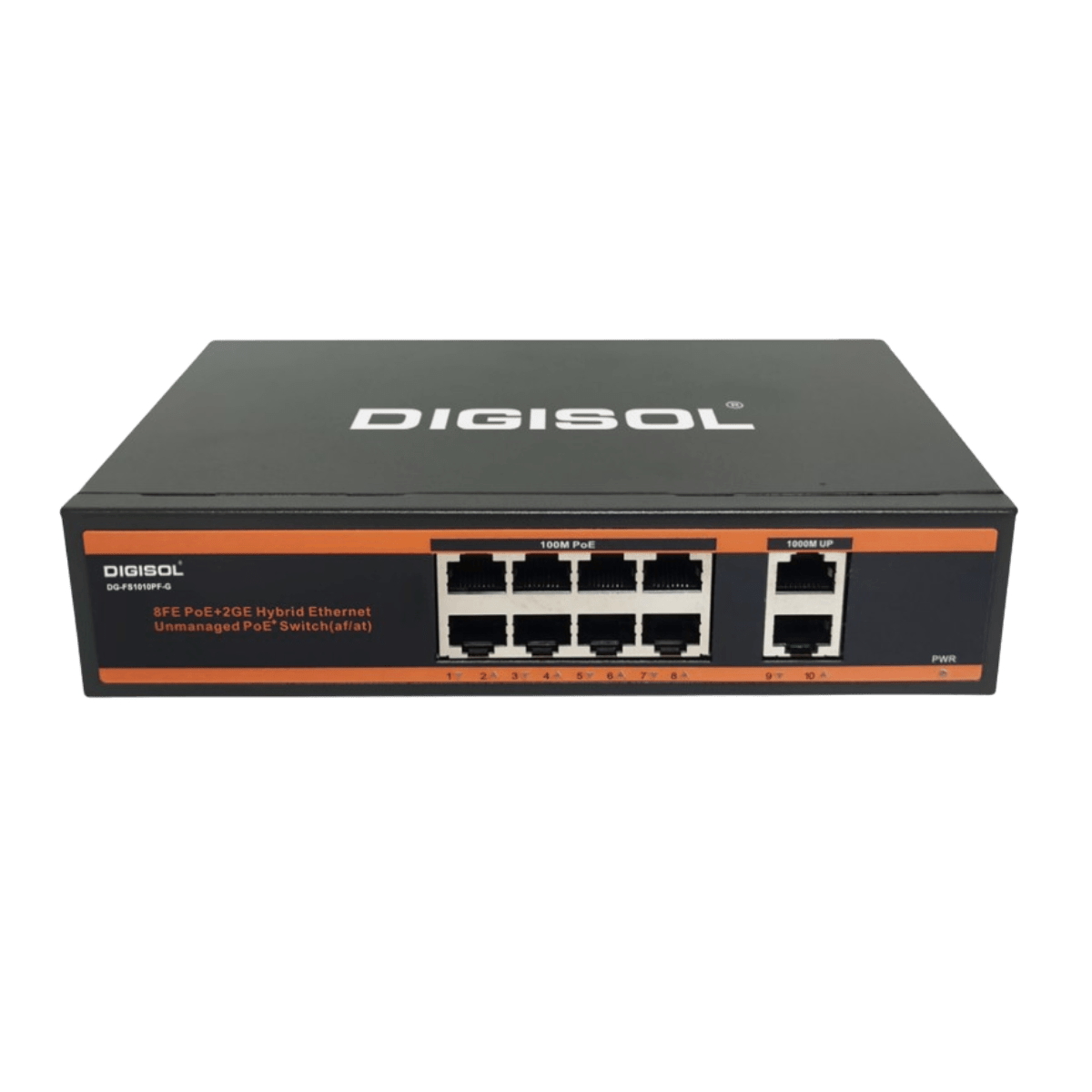

DIGISOLDG-FS1010PF-G Switch offers 8×10/100Mbps Ethernet ports with Power over Ethernet support with 2 *1000Mpbs Uplink ports. These PoE ports are IEEE 802.3afand IEEE802.3at compliant and can supply up to a Max. of30 watt per port and a total PoE powerof150Watt. The existing Ethernet cables can be used to power up PoE compliant network devices. This eliminates the need of an external power source and power cabling for such devices. The switch provides flexibility to users for connecting a PoE or non PoE device. The PoE devices connected to switch can be easily identified by the separate PoE LED status indicators for each port.
SIZE GUIDE
SIZE | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
BUST | 88 | 89 | 90 | 91 | 92 | 93 |
WAIST | 55 | 56 | 58 | 59 | 62 | 65 |
HIPS | 90 | 92 | 94 | 95 | 96 | 98 |
SIZE | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
BUST | 60 | 62 | 65 | 66 | 68 | 69 |
WAIST | 50 | 55 | 58 | 62 | 65 | 66 |
HIPS | 80 | 82 | 85 | 86 | 88 | 89 |
Size | US | UK / AUS | France | Italy | Japan | Denmark |
---|---|---|---|---|---|---|
XS | 0-2 | 6 | 34 | 38 | 5 | 32 |
S | 2-4 | 8 | 36 | 40 | 7 | 34 |
M | 6-8 | 10 | 38 | 42 | 9 | 36 |
L | 8-10 | 12 | 40 | 44 | 11 | 38 |
Description
KEY FEATURES
8 PoE 10/100Mbps ports + 2 10/100/1000Mbps uplink ports
Support PoE power up to 15.4W (IEEE802.3af)/ 30W (IEEE802.3at) for PoE ports
All ports support MDI/MDIX
PoE: 150W
Plug and play installation
Forwarding Mode: Store-And-Forward
Bult-in AC Power Supply
Support 6KV lightning protection
Fanless for quiet functioning with natural cooling
Small and compact design, suitable for desktop orwall-mounting
Supports distance of 250m at 10 Mbps
