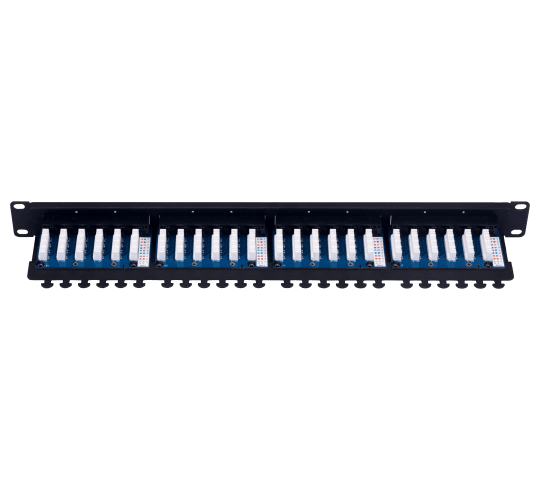

This CAT6 patch panel has contact pins and IDCs assembled with solderless process using Press fit technology on Patented PCBs.
Due to solderless design, the CAT6 patch panel performance is equal to that of CAT6A type.
SIZE GUIDE
SIZE | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
BUST | 88 | 89 | 90 | 91 | 92 | 93 |
WAIST | 55 | 56 | 58 | 59 | 62 | 65 |
HIPS | 90 | 92 | 94 | 95 | 96 | 98 |
SIZE | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
BUST | 60 | 62 | 65 | 66 | 68 | 69 |
WAIST | 50 | 55 | 58 | 62 | 65 | 66 |
HIPS | 80 | 82 | 85 | 86 | 88 | 89 |
Size | US | UK / AUS | France | Italy | Japan | Denmark |
---|---|---|---|---|---|---|
XS | 0-2 | 6 | 34 | 38 | 5 | 32 |
S | 2-4 | 8 | 36 | 40 | 7 | 34 |
M | 6-8 | 10 | 38 | 42 | 9 | 36 |
L | 8-10 | 12 | 40 | 44 | 11 | 38 |
Description
KEY FEATURES
Contacts pins and IDC mountings assembled in Patented PCBs by Solder-less Press-fit process
No oxidization of Contact pins due to absence of soldering flux leading to longer life
Fully (360 degree covered) 30 microns Gold plated Contact pins, for better for PoE Application.
Higher flexibility of square pins used here instead of the single side Gold Plated stamped pins used by other brands
6 Port Jack configuration specially designed & molded in ABS Fire retardant material.
90 Degree Punch-Down design for easy assembly on site.
Exceeds ANSI/TIA-568-C.2 standard, and supports 1000-BASE-T
IDC Accommodates 22~26 AWG Stranded and Solid wires.
Plug Insertion Life : >= 750 Cycles with FCC Compliant RJ-45 Plug
