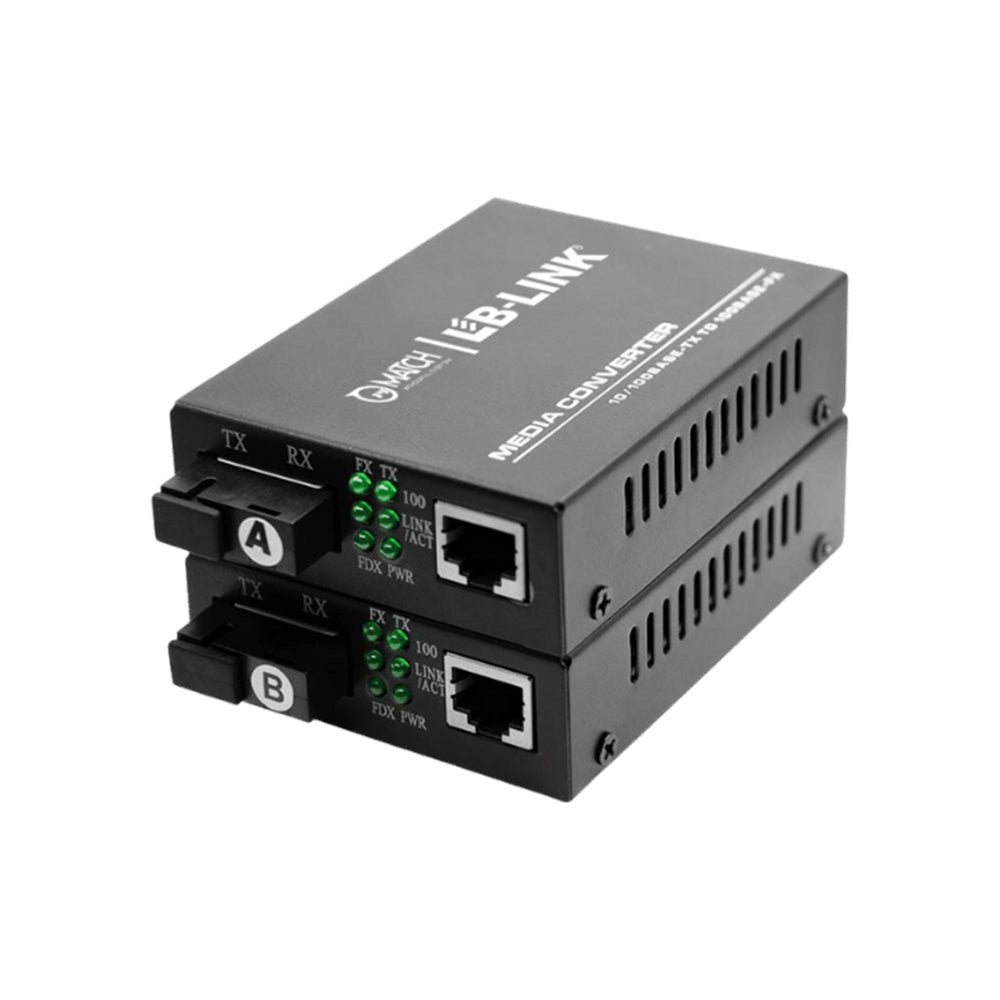

Media Converter-10/100 | Match
BL-MC20SF100
10/100BASE-TX TO BASE-FX
Match LB-Link’s 10/100 Media Converter enables you to link fibre optic cable to twisted pair for supporting ethernet-compatible devices.
Main Features:
[ 10/100Mbps Fibre Ethernet Media Converter ]
MATCH LB-LINK 10/100 Mbps Adaptive Ethernet fiber converter using switching technology for media conversion, which meets the standards of IEEE802.3, 802.3u, 802.3x. It can conduct mutual conversion between 10Base-T/100Base-TX twisted-pair electrical signal.
[ Stable Transmission Without Losing Internet Speed ]
This Media Converter provides faster and more stable transmission can provide hot swappable power protection. It extends the transmission distance of a network from 100m over copper wires to 20Km.
[ Easy Set up and Installation ]
It is very easy to set up this Media Converter. You need to just plug and play. This media converter provides average trouble-free usage of more than 50000 hours. It also accords with standard telecommunication level operation.
[ LED Indicators ]
It has LED indicators to know what is active in this 10/100Base TX to 100 Base FX bridging converter. It has active adopted four layers circuit structure, stable work, smooth data transmission, the anti-interference ability.
[ Other Features ]
* Supports SPANNING TREE structure fault-tolerant network
* Support hot swaps
*Automatic full-duplex and half-duplex conversion
* With the German Siemens surface welding assembly lines processing
* Support optional light path failure monitoring function, report switch network management.
Technical Specification
100 BaseFX
Band Width
IEEE802.3,802.3u,802.3x
RJ 45 Port
10/100 BaseT(X)
10/100/1000 Base T(X)
Wavelength
850nm/1310nm/1550nm
Fibre Port
100BaseFX
Optical Fibre
100 BaseFX
Multi-Mode
Single-Mode
Distance
2km, 1310nm
25km, 1310nm
Max
-20dBm
-10dBm
Min
-14dBm
-3dBm
Sensitivity
<-18dBm
<-30dBm
Power Requirements and Environmental Limits
100BaseFX
Input Voltage
5V
Power
5W
Operating Temperature
-20 ~ +70°C
Storage Temperature
-40-+85°C
Ambient Relative Humidity
5-95% (non-condensing)
Other Details
100BaseFX
Internal power supply
With 2 RJ-45
External power supply
With 4 RJ-45
Dimensions (mm)
94x70x25
140x110x30
215x110x30
Weight(g)
148
400
666
Out carton Dimensions(mm)
240x120x58
230x160x70
295x175x95
Out carton Weight(g)
396
685
1055
Download EDM
Download Datasheet
Check Out Media Converter 10/100/100 >>
