Name: XPON ONU with Voice
Brand: Match LB-Link
SKU: 10137
Availability: InStock

On Sale!

Original price was: ₹2,399.00.Current price is: ₹1,099.00.

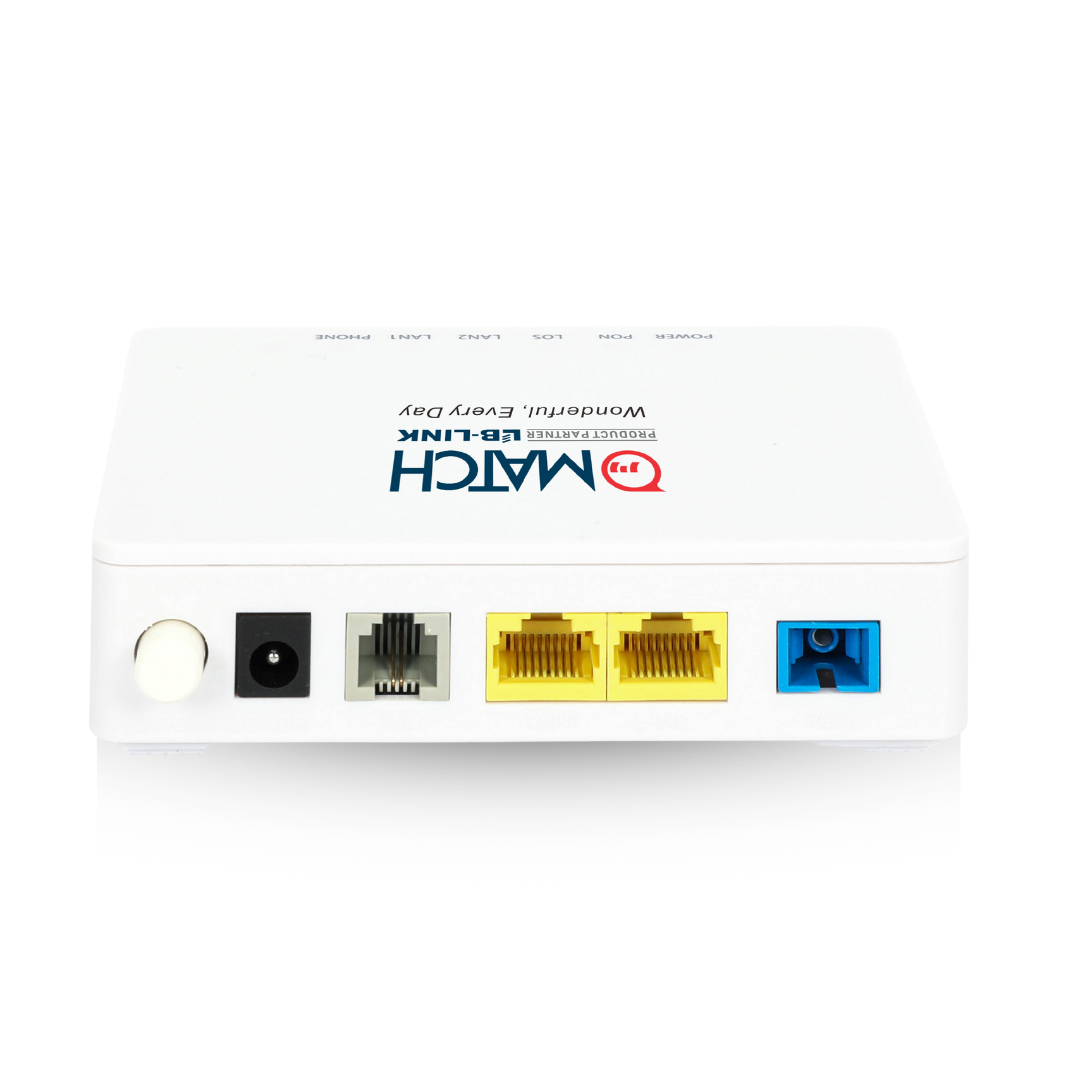

Match LB-Link XPON ONU with Voice
BL-MX102L1V
XPON 1GE+1FE+1POTS ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and designs XPON Gigabit Ethernet products.
The box is based on the mature Gigabit XPON technology, highly reliable and easy to maintain, with guaranteed QOS for different services.
It is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah. Good third-party compatibility when used with third-party OLTs such as Huawei/ZTE/ Fiberhome/BDCOM OLT.
Salient Features
[ Easy Set Up and Installation ]
This XPON ONU can be configured in three ways i.e. Bridge Mode, PPPoE, and Static. If you keep the ONU on bridge mode then You are required to configure the router. In the PPPoE and static modes, you just need to configure ONU and just plug and play the router. It facilitates Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade.

[ Best Compatibility ]
It is compatible with all OLT OLT based on Broadcom/PMC/Cortina chipset and routers. This ONU is the best suitable for BSNL, Alliance, GTPL, Wishnet, Railwire, Orbit, Transmedia and other fiber. It would not work with few networks who had locked like Jio, Airtel, Excitel. It is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

[ Gigabit Speed ]
You can get 10/100/1000Mbps fast ethernet speed with this MATCH LB-LINK XPON ONU. It has high performance chipset which works with both GPON as Well as in EPON configuration.

[ Voice port for Internet Calling ]
There is a separate voice port in this ONU. So, You can connect any two devices for computer, Laptop, Smart TV, and CCTV Camera with DVR with Telephone port.
[ Other Supporting Features ]
The following are the technical features:
Integrated OAM remote configuration and maintenance function, Support NAT, Firewall function, Support IPv4 and IPv6 dual-stack, Integrated line testing compliant with GR-909 on POTS, and also supports rich QinQ VLAN functions and IGMP Snooping multicast features.

Technical Specification:

Technical item

1GE+1FE+1POTS XPON ONU

PON interface

1 E/GPON port
Wavelength:Tx1310nm,Rx 1490nm
SC/UPC connector
Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM

LAN interface

1 x 10/100/1000Mbps and 1 x 10/100Mbps auto-adaptive Ethernet interfaces. Full/Half, RJ45 connector

POTS interface

1 FXS, RJ11 connector
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
Line testing according to GR-909

LED

For Status of Power, PON, LOS, Phone, INTERNET, LAN1, LAN2

Operating condition

Temperature: 0℃～+50℃
Humidity: 10%～90%（non-condensing）

Storing
condition

Temperature: -30℃～+60℃
Humidity:10%～90%（non-condensing）

Power supply

DC 12V,1A/1.5A

Power consumption

≤7W

Dimension

110mm×90mm×25mm（L×W×H）
